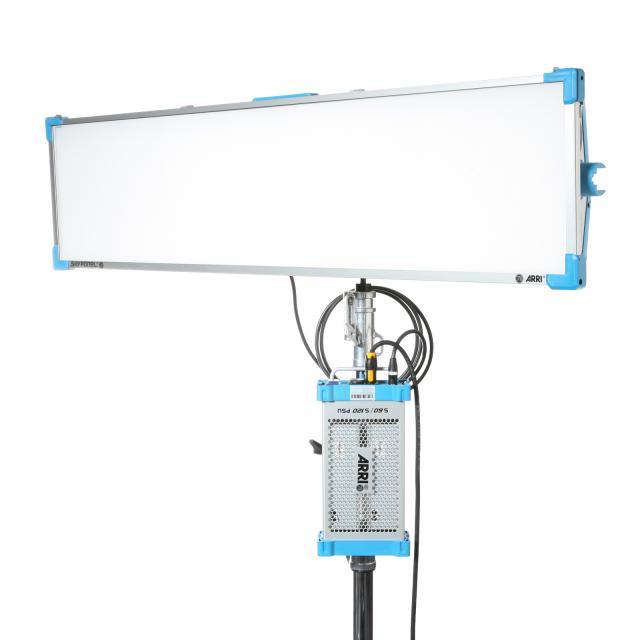

Our SkyPanel S120 is twice as long as the S60 but weighs nearly the same. Its larger light aperture makes a great soft light even better. Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S120 has more than enough light for most applications. At the same time, the lamp head is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
- Lamphead S120-C
- Optical System: Soft Diffusion Panel
- Light Aperture: 1290 x 300 mm / 50.8 x 11.8"
- Beam Angle: 110° (Half Peak Angle)
- Weight: Center Mount: approx. 14 kg / 31 lbs, Manual Version: approx. 16 kg / 36 lbs
- Size w/ spigot (H x W x L):
- 588 x 133 x 1332 mm / 23.1 x 5.2 x 52.4"
- Mounting: 28 mm Spigot (Junior Pin)
- Tilt Angle: +/- 90º
- Lamphead Voltage Input: 48 V DC
- Power Consumption: 400 W Nominal, 430 W Maximum
- Lamphead Power Connection: Male 3-Pin XLR to 15 Amp (Pin 1: Negative / Pin 2: Positive)
- Battery Connector: Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
- Battery DC Voltage Range: 23 to 36 V DC
- Battery Mode Light Output: 50 % of total output
- White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
- Colored Light: Full RBG+W color gamut with Hue and Saturation control
- Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
- Color Rendition: CRI Average > 95
- TLCI Average > 90
- Green-Magenta Adjustment:
- Continuously adjustable (Full Minusgreen to Full Plusgreen)
- Dimming: 0 to 100% continuous
- Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
- Remote Device Management (RDM*):
- *RDM Available in Future Firmware:
- DMX Setup, Hour Counter and Standard RDM commands
- Software Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac
- USB-A: Software Upgrade via flash drive
- Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
- Protection Class / IP Rating: III / IP20
- Estimated LED Lifetime (L70): 50,000 hours
- Estimated Color Shift Over Liftetime: +/- 5 %
| Detail | Value |
|---|---|
| Color Engine | Multicolor RGBW |
| Powersupply (A) | Household 16AH |
| Power Consumption (W) | 400 |
| Actual Firmware | 4.2 |
| App for remote operation | ARRI Stellar |
| IP Rating | IP54 |
| Kelvin maximal | 10000 |
| CRI | 95 |
| Type of Lightsource | softlight |
| Power Supply | V-mount Adapter available |
| Kelvin minimal | 2800 |
