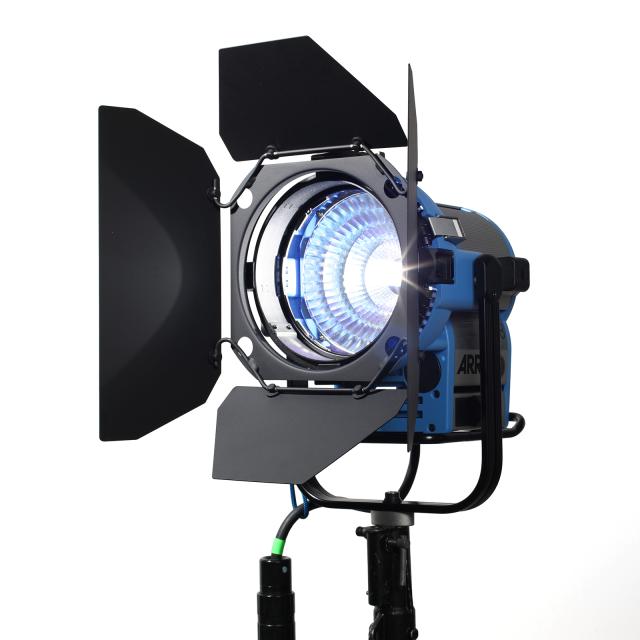

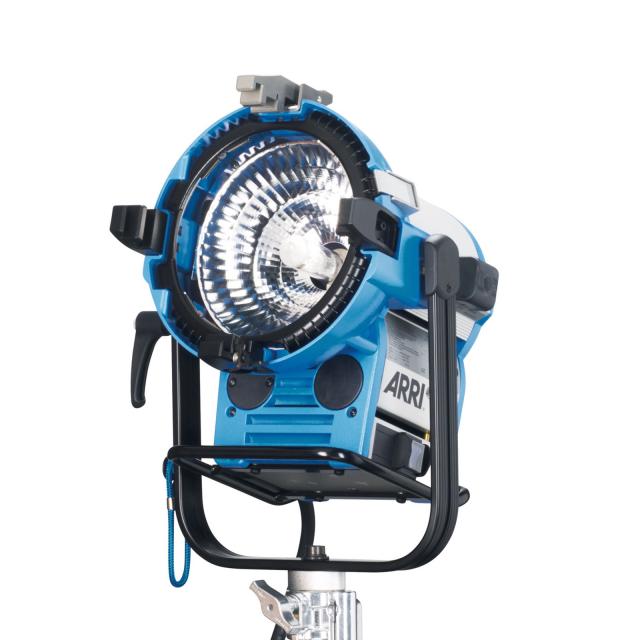

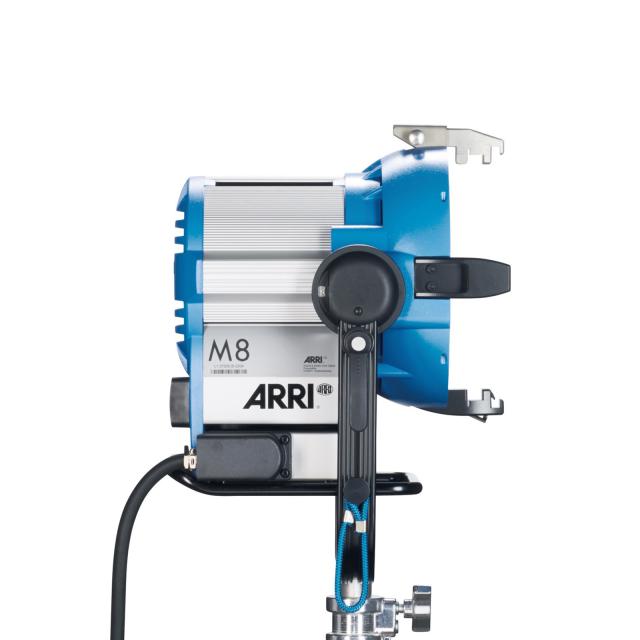

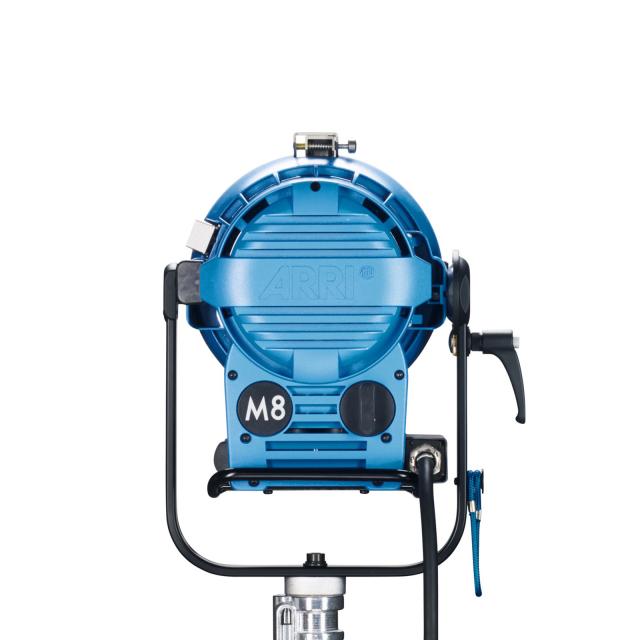

The Arri HMI M8 Set 800W can be used in 2 wattages like other M lamps. Here the 800W version. The M8 is the latest and smallest lighting fixture in ARRI’s highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture. The combination of open face design and the unrivalled efficiency of the MAX Technology reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15° and 60° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.
- Lens-less MAX Technology: Easy to use
- Light output comparable to 1,200 W fixture
- Smallest lamphead with MAX Technology reflector
- Highly mobile for a wide range of uses
- Focusable between 15° and 60°
- Cross-Cooling allows safe operation even at 90° tilt
- Uses existing 230 & 245 mm accessories from ARRI True Blue D12 and from Chimera
- Compensation for Cable Losses (CCL)
- Uses existing 575 to 1,800 W cables with international connector
- Suitable for high frame rate images
- IP Rating IP23
- Tilt locks to hold heavy accessories stable
Detail | Value |
---|---|
Highspeed Capability | Yes |
Power (W) | 800 |
Powersupply (A) | Household 16AH |
Power Supply | 230V Supply |
Kelvin minimal | 5600 |
IP Rating | IP23 |
Kelvin maximal | 5600 |
CRI | 96 |
