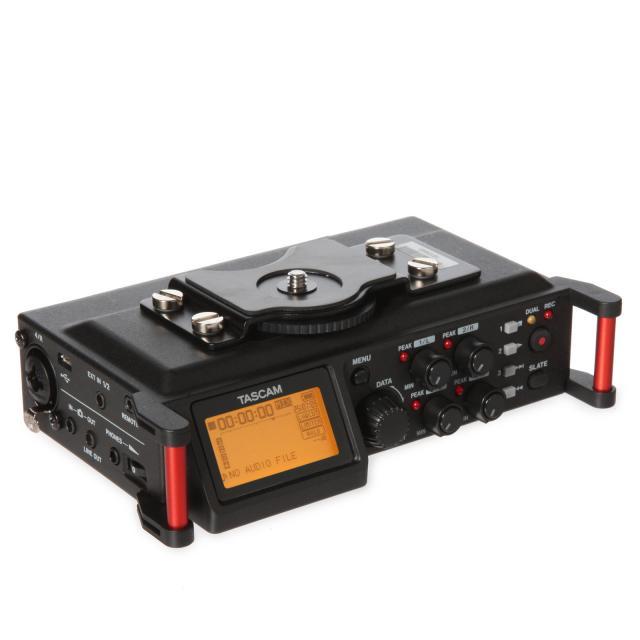

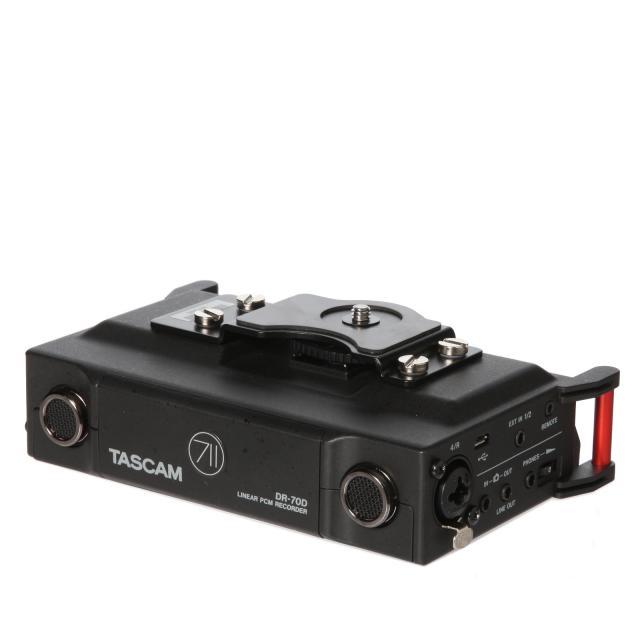

The DR-70D from TASCAM is uniquely designed for the needs of filmmakers, television producers, advertisers, and documentarians, the DR-70D packs multitrack recording into a package compact enough to use with any camera. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.
- Number of Tracks: 4
- Max Sample Rate/Resolution: 96 kHz / 24-Bit
- Microphone: Built-In Omnidirectional Electret Condenser Stereo Pair, A/B
- Memory Card Supportc: SD Cards up to 128 GB
- Audio File Formats: BWF, WAV
- Sample Rates: WAV: 44.1 / 48 / 96 kHz
- Bit Depth: 16 / 24-Bit
- Timecode: No
- Recording Time
- WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo)
- WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo)
- WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo)
- WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo)
- WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo)
- WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo)
- Connectivity
- Analog I/O: 4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
- 1 x 2.5 mm TRS Female Remote Input
- Phantom Power: +24 / 48 V ± 4 V (Selectable on Individual Inputs)
- Phantom Power Current: 10 mA per Channel
- Plug-In Power: Yes
- Host Connection: 1 x Micro-USB (USB 2.0)
- Performance
- Frequency Response: Line Outputs, Mic/Line Inputs:
- 20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA)
- 20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA)
- Gain Range
- Balanced Inputs: +21 dB to +63 dB
- Unbalanced Inputs: +3 dB to +38 dB
- Max Input Level
- Mic Inputs: 0 dBu
- Line Inputs: +20 dBu
- 1/8" Inputs: +10 dBV
- Camera Inputs: +6 dBV
- Max Output Level
- Camera Outputs: -24 dBV
- Line Outputs: +6 dBV
- Headphone Output Power: 20 mW per Channel
- Power
- Power Options: Batteries, USB Bus Power, AC/DC Power Adapter
- Battery Type: 4 x AA (Not Included)
- Approximate Battery Life
- WAV 44.1 kHz/16-Bit: 6 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording)
- 3.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording)
- 11 Hours (AA Alkaline, Recording, Built-In Mic)
- 6.25 Hours (AA NiMH, 2 Channels, Phantom Off, Recording)
- 3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording)
- 10.5 Hours (Alkaline, Recording, Built-In Mic)
- Mounting Options: 1/4"-20 Female, Shoe Mount
