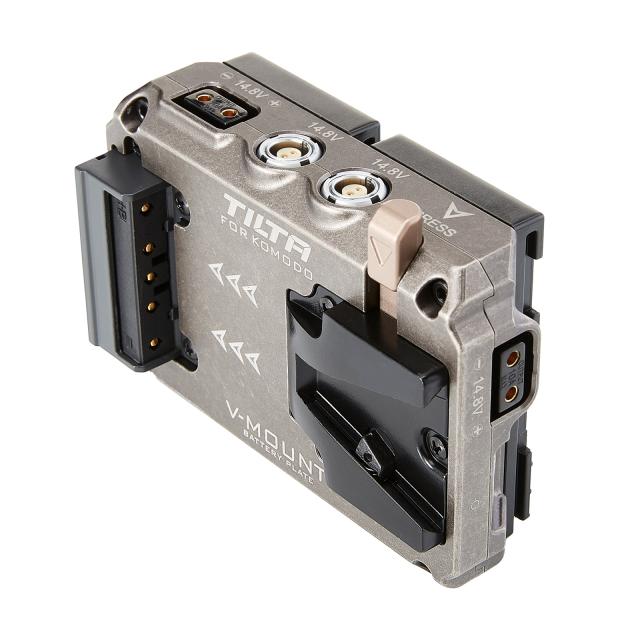

Our RED Komodo Set consists of basically all you need to shoot apart from a Lens. Cage, Batteries, Memorycards are included. The Komodo is a 6k global shutter super 35 camera with small dimensions which makes it perfect also for gimbal use. The camera comes with a Canon RF- lens mount to shoot with the newest generation of Canon Lenses. An Adapter to Canon EF Mounts is part of the set. Additional we can offer an Adapter to PL when shooting with PL-mount lenses. Storage media included are 2x 512GB Cfast cards and a Cardreader to USB-C or A. In addition to the two Canon BP950 batteries with charger, the set also includes an adapter to V-mount batteries, which provides additional power outlets D-tap and Lemo.
- SENSOR TYPE: KOMODO® 19.9 MP Super 35mm Global Shutter CMOS
- EFFECTIVE PIXELS: 6144 x 3240
- SENSOR SIZE: 27.03 mm x 14.26 mm (Diagonal: 30.56mm) Super 35
- DYNAMIC RANGE: 16+ stops
- MOUNT TYPE: RF mount
- accepts Canon RF Mount Based Lenses and Adapters. Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
- Additional RF to PL Mount
- RF to EF mount with integrated variable ND
- MAX DATA RATES
- Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards
- REDCODE® RAW MAX FRAME RATES
- 40 fps at 6K 17:9 (6144 x 3240): (512GB/HQ/17min)
- 50 fps at 6K 2.4:1 (6144 x 2592): (512GB/HQ/18min)
- 48 fps at 5K 17:9 (5120 x 2700): (512GB/HQ/21min)
- 60 fps at 4K 17:9 (4096 x 2160): (512GB/HQ/26min)
- 120 fps at 2K 17:9 (2048 x 1080): (512GB/HQ/53min)
- PLAYBACK FRAME RATES (PROJECT TIME BASE)
- 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
- AVAILABLE REDCODE® SETTINGS
- REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240)
- up to 40 fps
- REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160)
- up to 60 fps
- REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080)
- up to 120 fps
- REDCODE® RAW ACQUISITION FORMATS2
- 6K 17:9 (6144 x 3240), 2.4:1 and 16:9
- 5K 17:9 (5120 x 2700)
- 4K 17:9 (4096 x 2160)
- 2K 17:9 (2048 x 1080)
- APPLE PRORES
- 4K (4096 × 2160) at ProRes 422 HQ (512GB/25fps/1h27min)
- and ProRes 422 (512GB/25fps/2h20min)
- up to 60 fps
- 2K (2048 × 1080) at ProRes 422 HQ (512GB/25fps/5h48min)
- and ProRes 422 (512GB/25fps/9h22min)
- up to 120 fps
- DC POWER INPUT
- +7 to +17 V DC via the integrated 2-pin DC-IN port
- AUDIO
- Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz. Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
- REMOTE CONTROL
- WiFi for camera control via interchangeable antenna with SMA connection Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port, Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
- MONITOR OUTPUTS
- Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
- 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
- 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
- 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
- 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
- SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
- Approx Running Time with V-Mount 95WH
- 2 hours (depending on temperature and additional accessories)
- Approx running time with 2x RED Volt
- 1,5 hours (depending on temperature and additional accessories)
- Maximal storage capacity (time)
- (e.g. 6K 16:9/25fps/RedRaw HQ/512 GB): 30 minutes
- Maximal storage capacity (time)
- (2K 17:9/25fps/ProRes 422/512 GB): 9hr 22 minutes
- Storage need for 1 hour shoot max.resolution
- (6k 16:9/25fps/RedRaw HQ): 1TB
- Storage need for 1 hour shoot min. Resolution
- (2k 17:9/25fps/ProRes 422): 54,57 GB
| Detail | Value |
|---|---|
| Storage Medium | CFast |
| Sensor Size | Super 35 |
| max. ISO | 12800 |
| Imagestabilizer | No |
| max. Framerate Video | 60 |
| Video Resolution | 6K |
| Output | Timecode |
| Camera Mount | PL |
| Native ISO | 800 |
| Global Shutter | Global Shutter |
