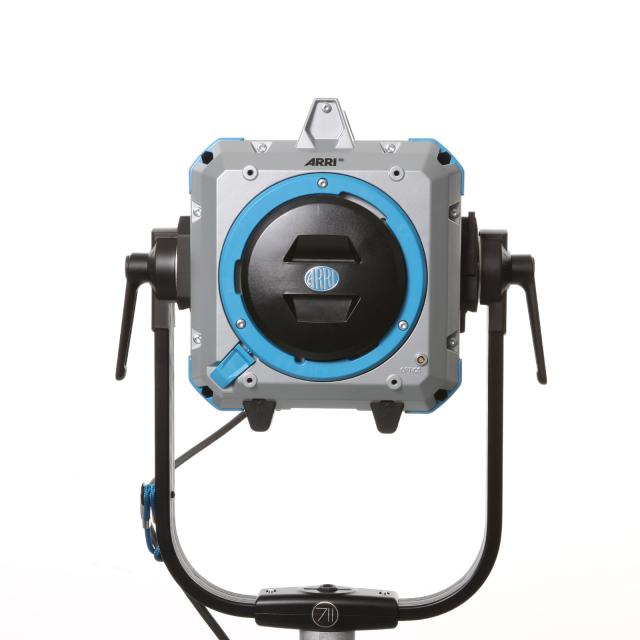

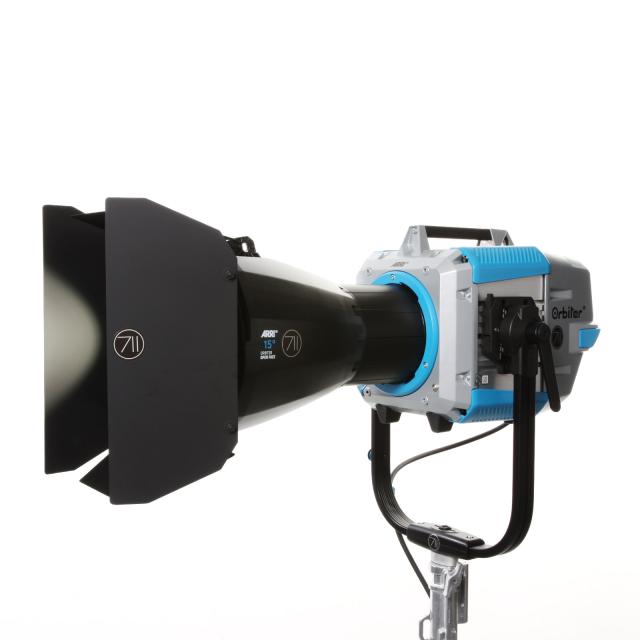

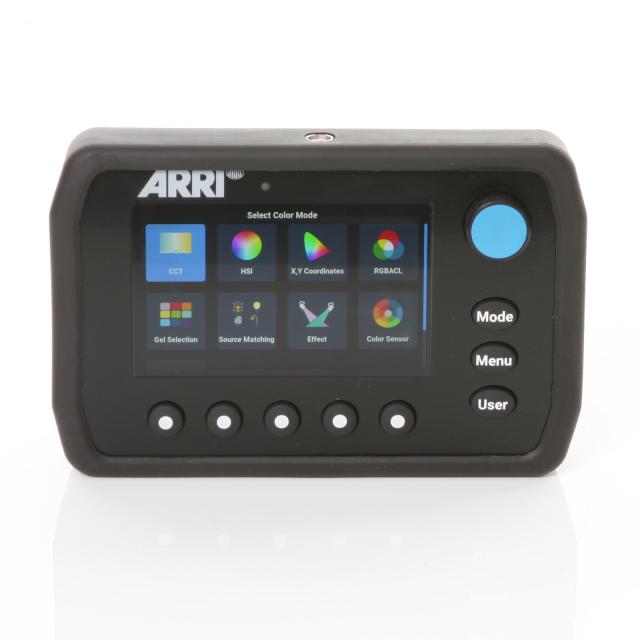

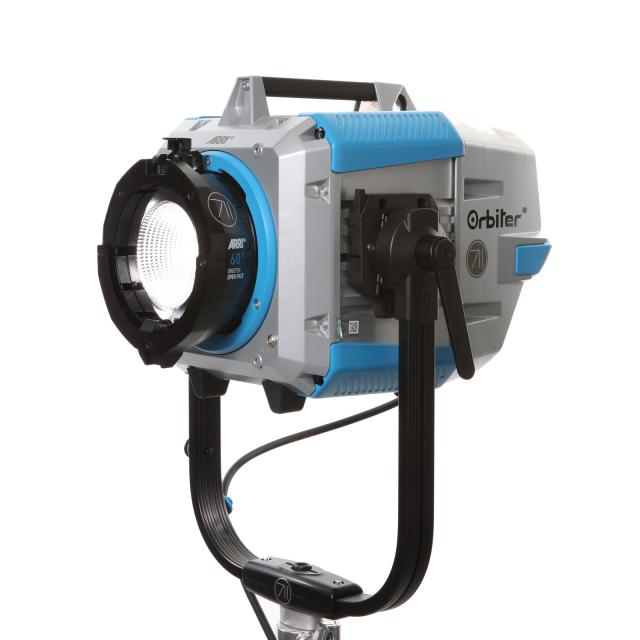

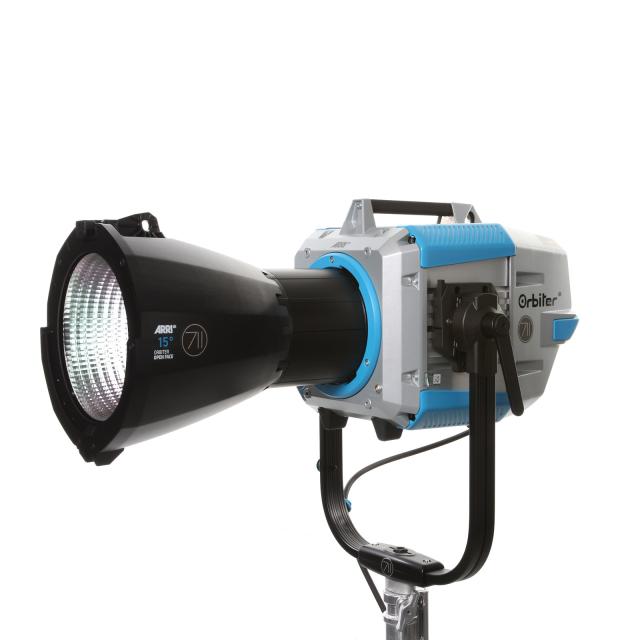

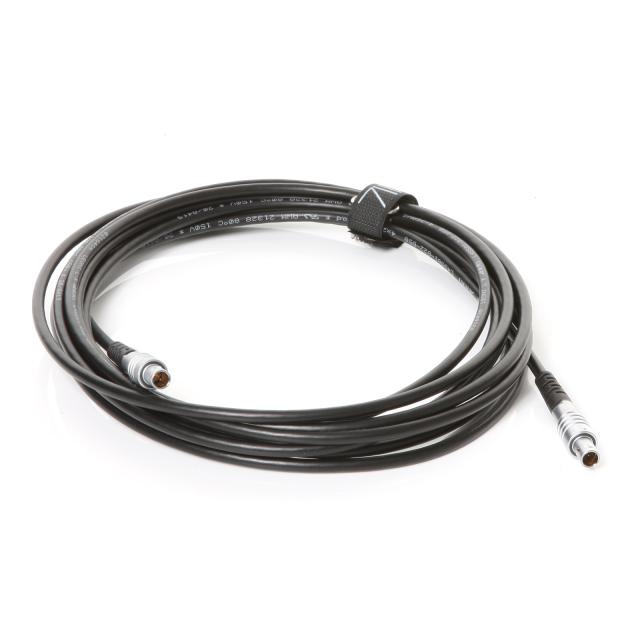

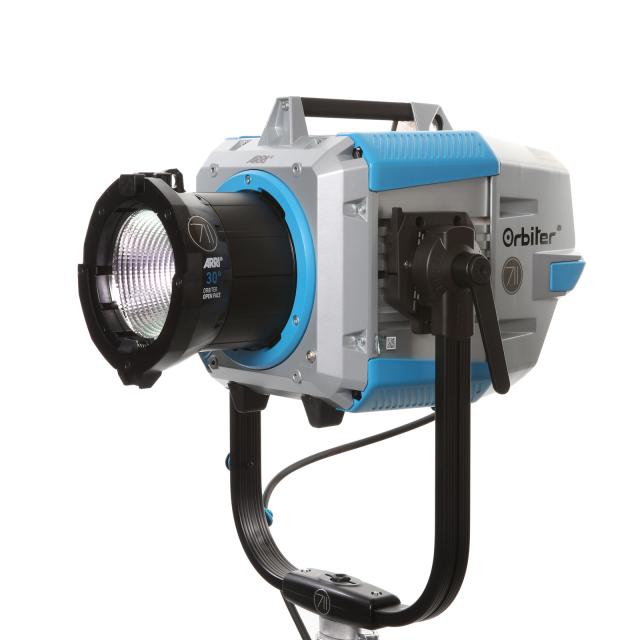

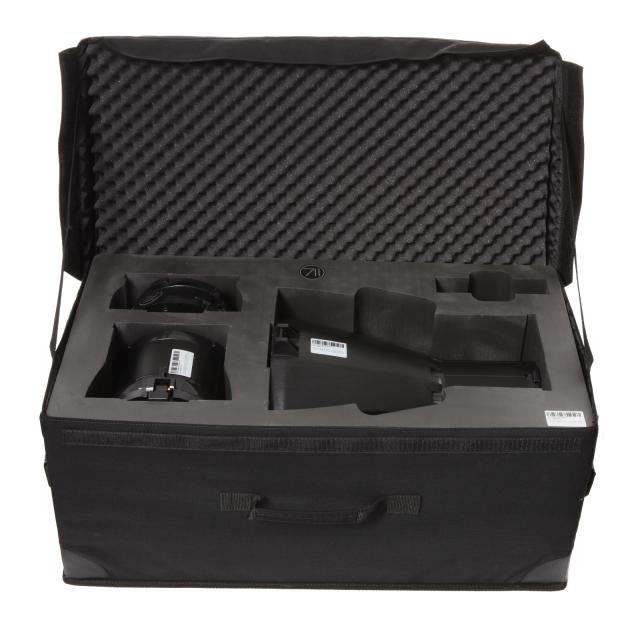

The Arri Orbiter is a completely new developed LED point light source. 400W power consumption, QLM (quick light mount) to connect different light shapers, a 6-LED engine with red, green, blue, amber, cyan and lime allows more accurate colour renditions and an extended colour range than the Skypanel. The Orbiter is weatherproof. Our set also includes the Orbiter and 3 open face reflectors 60°, 30° and 15° each with barn doors. Everything comes together with a removable control unit in a hard case and a soft case for the light shapers - everything ready to go. The Orbiter has a built-in LumenRadio's CRMX module. Additionally, we offer more light shapers: Dome reflectors and snapbags as well as Octa softboxes. The Orbiter has a completely new concept and the ability to adapt to the surrounding light - ideal for easy working on location. The well-known modes CCT, HSI, YX, RGB, GEL, source Matching and effects are also integrated into the Orbiter. Our Arri Orbiter Openface Kit includes Worker with mount and control unit with 5m cable extension. The 3 Openfce optics 60°, 30° and 15° with barn doors and snoot reflector.
- Beam Angle: 60°
- Color Temperature: 2000 to 20,000K
- Color Accuracy Standard: CRI 98
- TLCI: 95
- Dimming: Yes, 0 to 100% (Continuous)
- Display: LCD
- Housing Material: Aluminum
- Number of LEDs: 190 (RGB)
- Expected Lamp Life: 50000 Hours (L70)
- Fixture Weight 33.07 lb / 15 kg (Including Yoke)
- Power Input Connector: 3-Pin XLR, powerCON
- DMX Connector: 5-Pin XLR, RJ45
- Service Connector: USB Type-A
- Reflector Mount: ARRI QLM

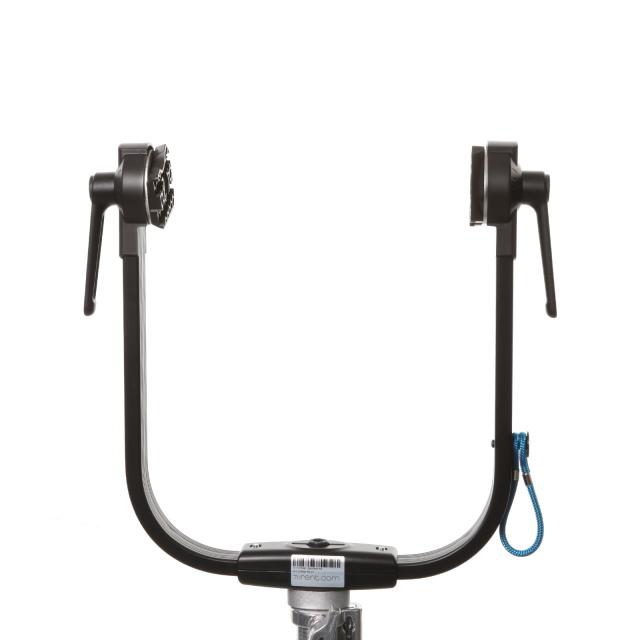

- Yoke Mount: ARRI Quick Release
- Mount via Included Adapter: 1-1/8" Stud
- Yoke Material: Aluminum
- Yoke Type: Yoke/Bracket
- Tilt: 90°
- Remote Control Type: DMX, Wired Remote
- AC Input Power: 100 to 260 VAC, 50 / 60 Hz
- Power Source AC Adapter, External Battery
- Max Power Consumption: 500 W
- Power Pass-Thru: Yes
- Cable Length: 15' / 4.57 m

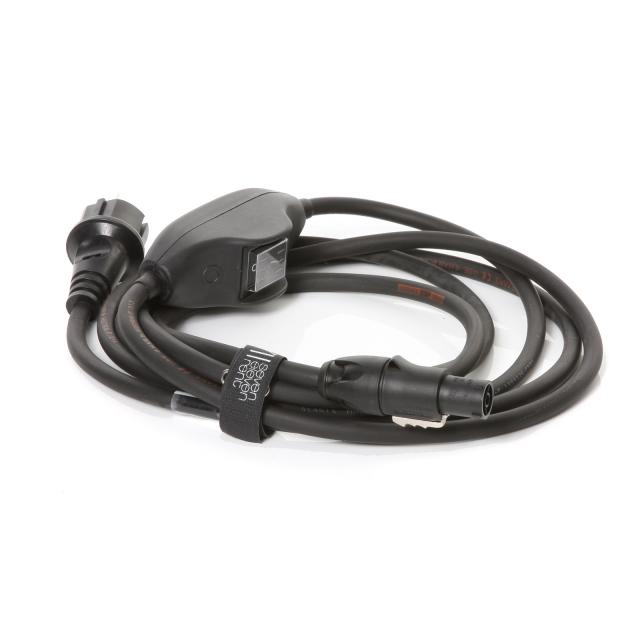

- Cable Type: powerCON to NEMA 5-15
Detail | Value |
---|---|
Color Engine | Multicolor RGBLAW |
Powersupply (A) | Household 16AH |
Power Consumption (W) | 400 |
App for remote operation | ARRI Stellar |
Kelvin minimal | 2000K |
IP Rating | IP54 |
Kelvin maximal | 20000K |
Actual Firmware | 2 |
Type of Lightsource | spot |
Power Supply | 230V Supply |
CRI | 95 |
